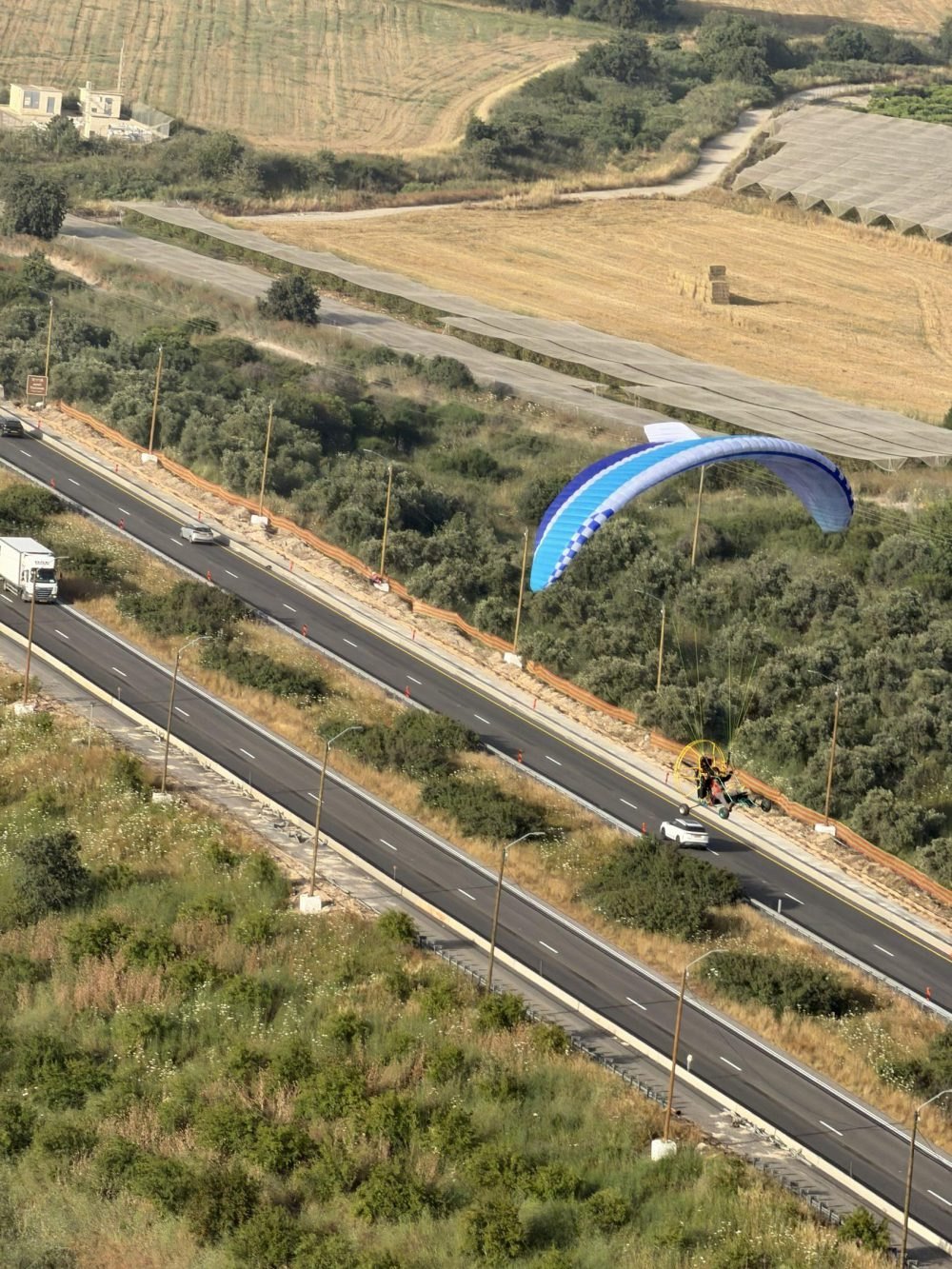

APCO F3 Bi MKII Tandem Trike Wing – image 1 of 6

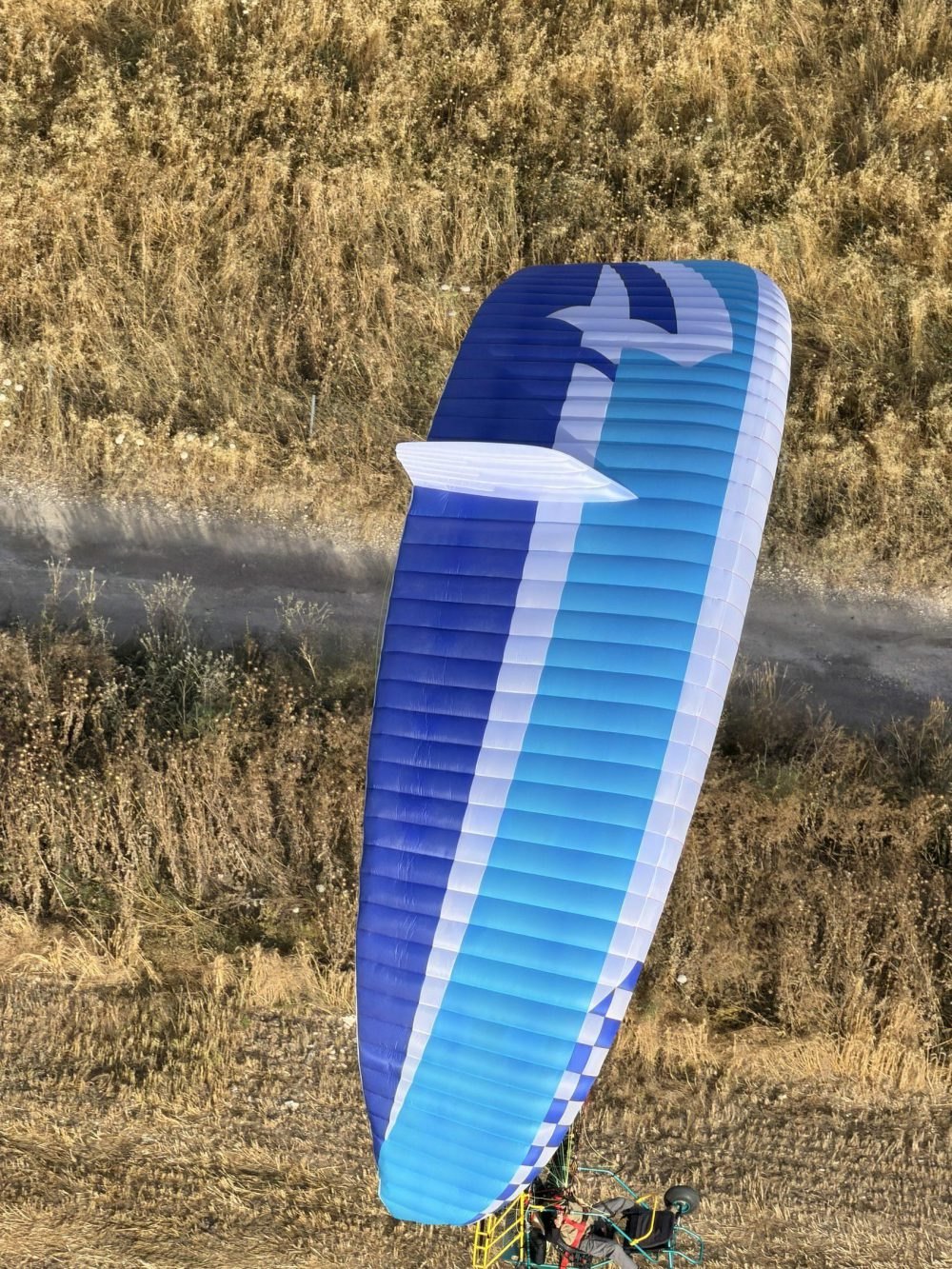

APCO F3 Bi MKII Tandem Trike Wing – image 2 of 6

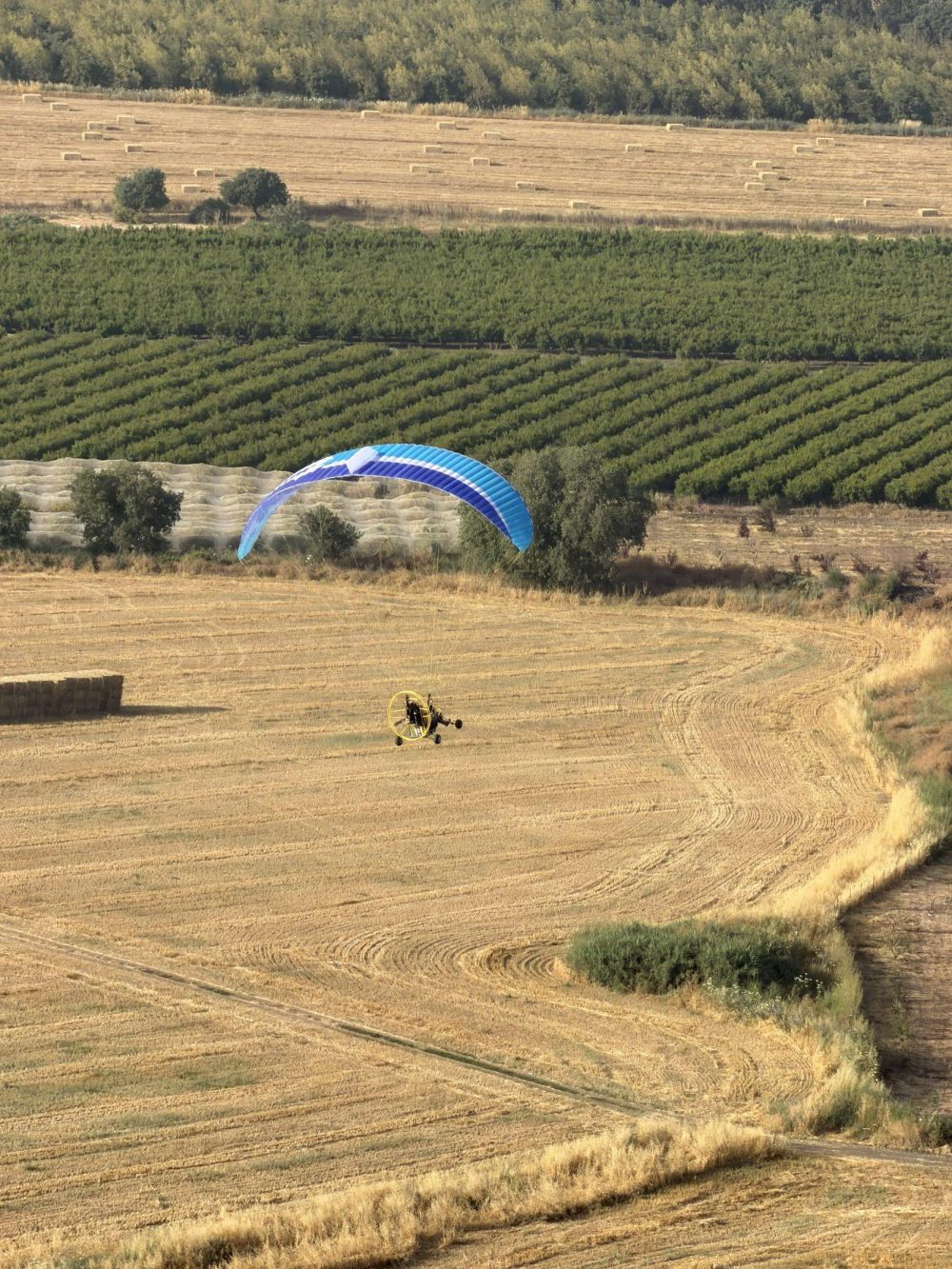

APCO F3 Bi MKII Tandem Trike Wing – image 3 of 6

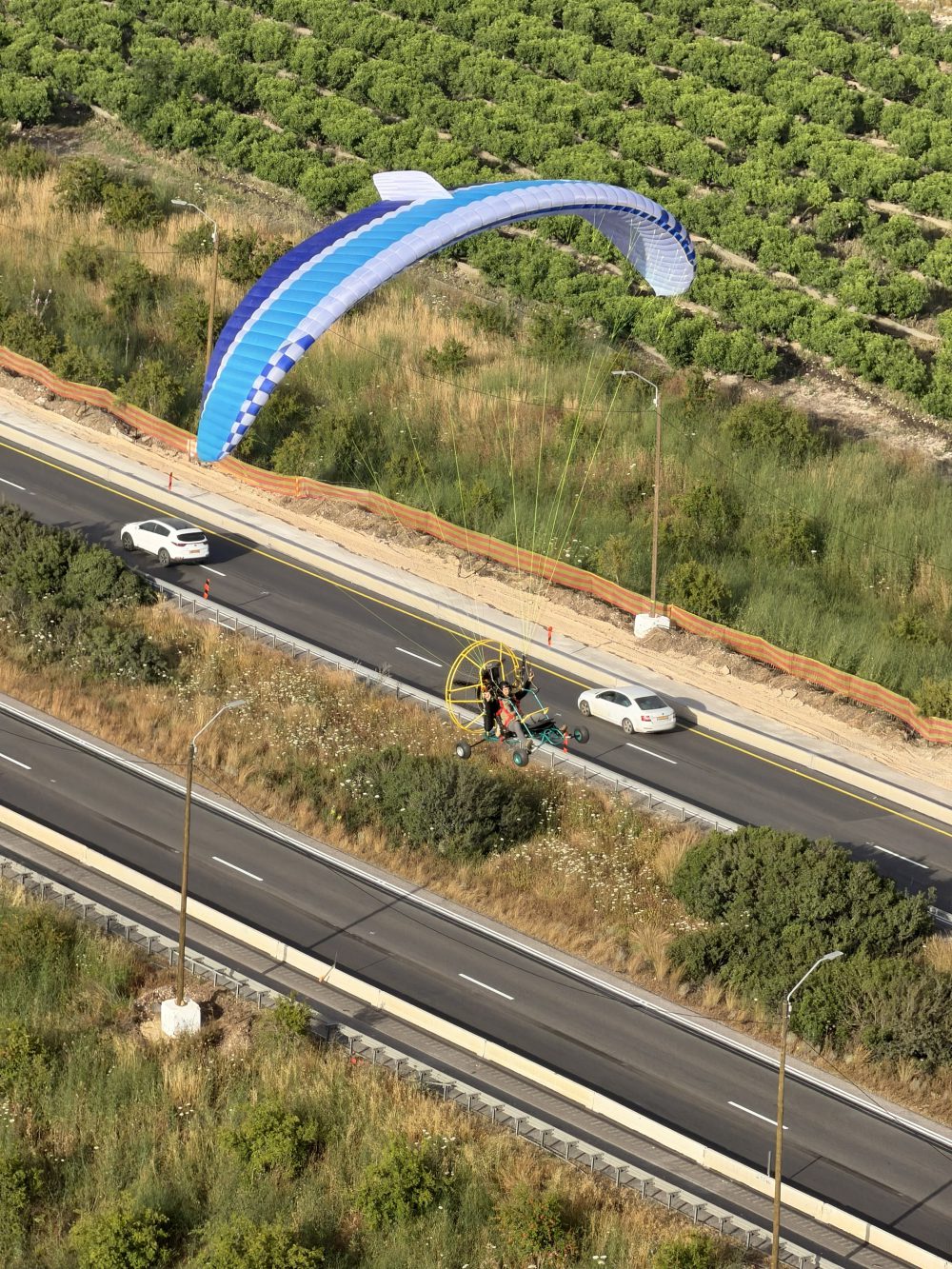

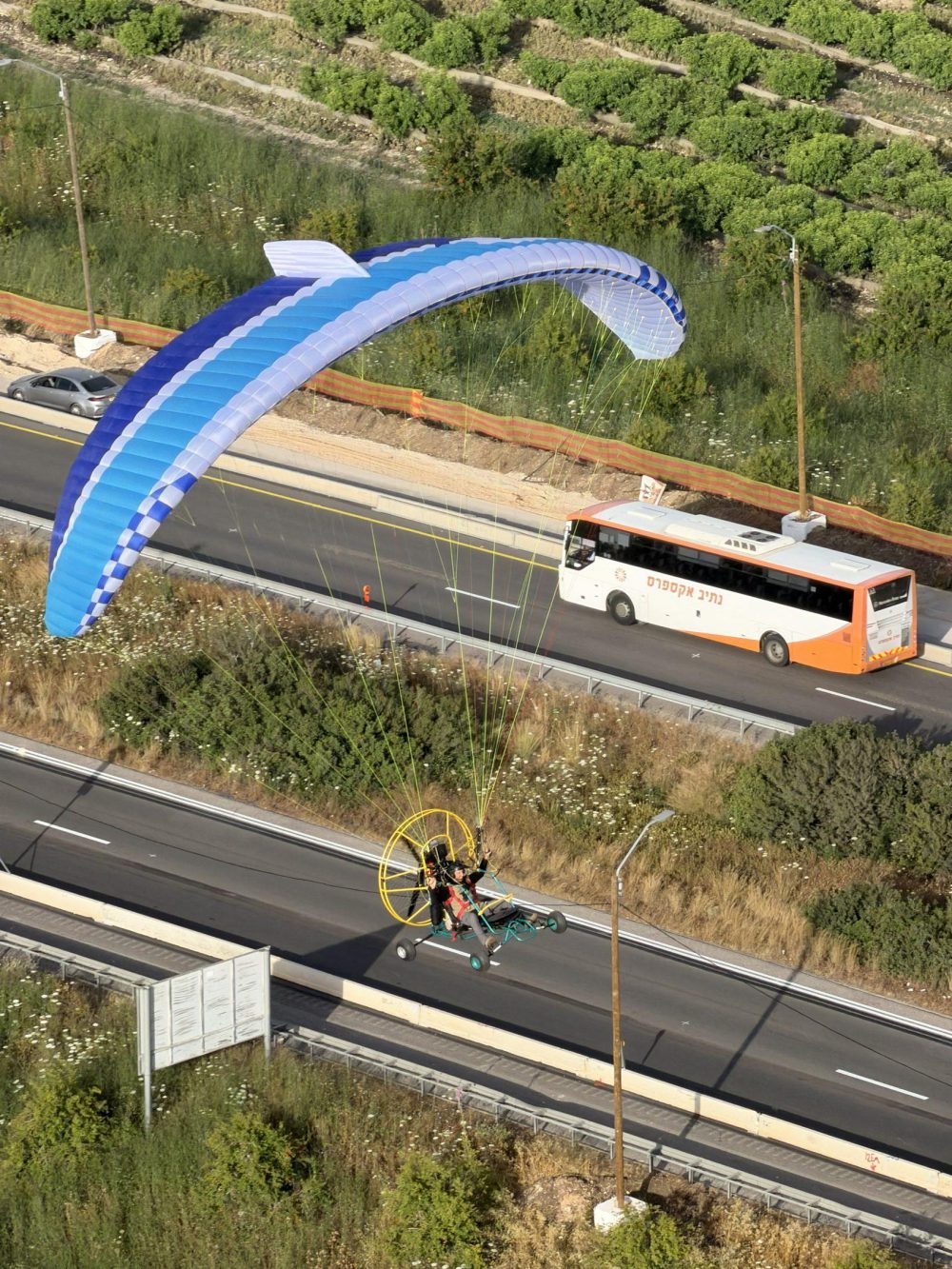

APCO F3 Bi MKII Tandem Trike Wing – image 4 of 6

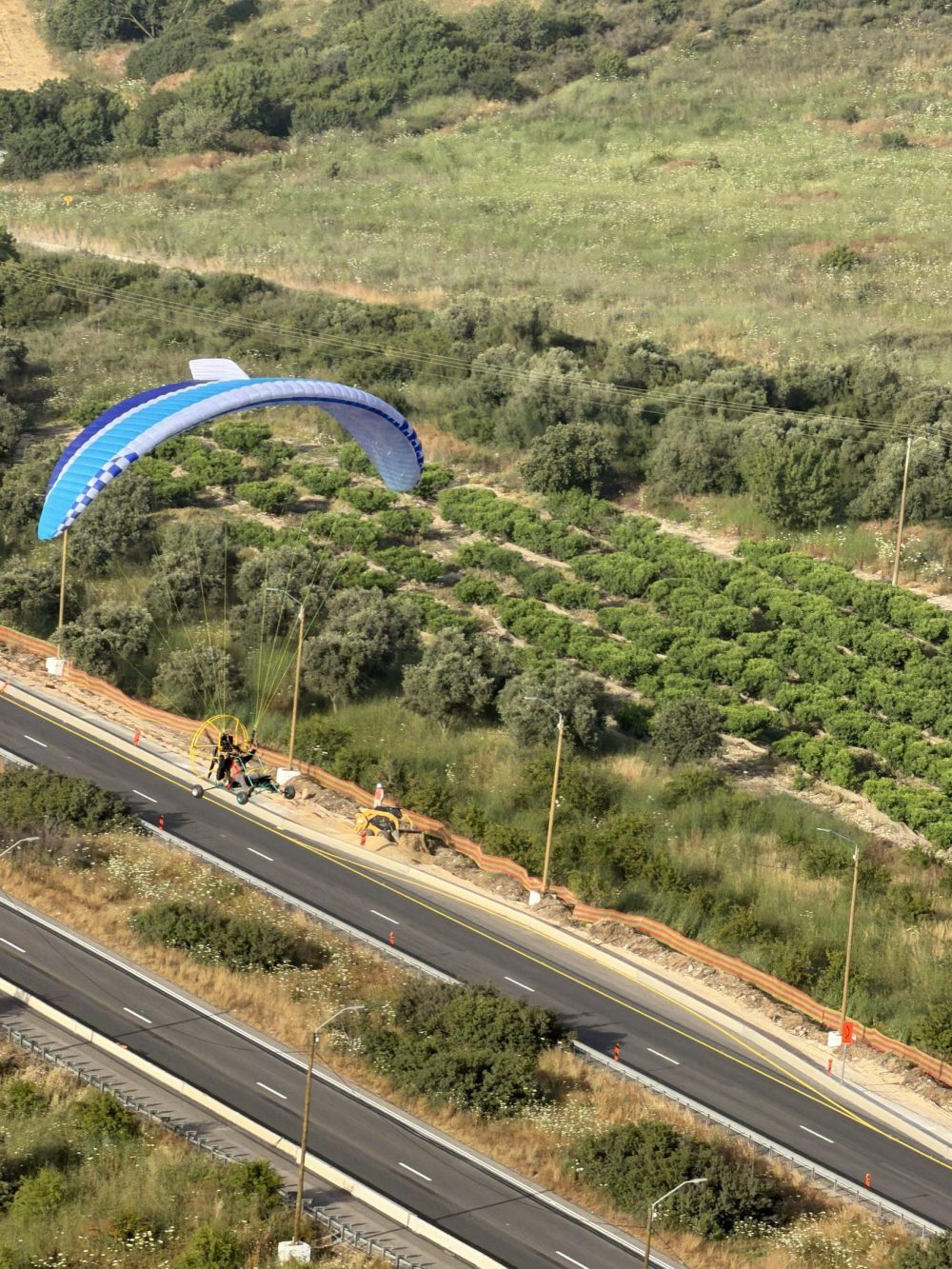

APCO F3 Bi MKII Tandem Trike Wing – image 5 of 6

Datasheet · APCO-F3-BI

APCO F3 Bi MKII

The F3 Bi MKII is our full-reflex tandem wing with the Mohawk system — designed for tandem and solo trikes, foot-launchable as well. DGAC-certified (sizes 33 and 36).

DGAC 2 Sizes

Find a dealer B2B pricing (dealer login)

I · Datasheet

APCO F3 Bi MKII at a glance

Certification: DGAC
Sizes: 33 · 36
All-up weight: 120–430 kg
Area: 33–36 m²
Cells: 56–58
Canopy weight: 8.1–8.3 kg
Speed: 36–69 km/h
Min. sink: 1.2 m/s
Colours: Sky Blue #14 · Red #5
Warranty: 3 years / 250 hours
Manual: Open PDF

II · Highlights

Three reasons for APCO F3 Bi MKII.

Safe
Full reflex for tandem

“A dedicated full reflex wing, that brings the best of what we have to offer to the tandem experience”.
Performance
Mohawk raises the bar

With the patented Mohawk technology: “we've taken stability and safety to a new level”.
Easy
Solid and simple in operation

“A solid, stable, easy to use wing” — built for tandem and solo trike operation.

III · Sizes

Size chart.

Specifications per size for APCO F3 Bi MKII (2 sizes).
Datasheet	33	36
Cells	56	58
Area (m²)	33	36
Projected area (m²)	27.9	30.46
Span incl. stabilizer (m)	13.5	14.7
Projected span (m)	10	11.64
Aspect ratio	5.7	6
Projected aspect ratio	4.23	4.45
All-up weight ParaTrike (kg)	120–387	120–430
Canopy weight (kg)	8.1	8.3
Root cord (m)	2.96	2.96
Tip chord (m)	0.3	0.3
Length of lines on B (m)	8.4	8.89
Total line length (m)	449	488
Frame hook-up width (mm)	500–650	500–650
Minimum recommended engine thrust (size 33) (kgf)	115	—
V-min	25 km/h	25 km/h
V-trim closed	36–40 km/h	36–40 km/h
V-trim neutral	43–47 km/h	43–47 km/h
V-trim open	50–56 km/h	50–56 km/h
V-max	69 km/h	69 km/h
Min sink at optimal wing loading	1.2 m/s	1.2 m/s
Paramotor certification	DGAC	DGAC
Trike certification	DGAC	DGAC

Size

33

Cells: 56
Area (m²): 33
Projected area (m²): 27.9
Span incl. stabilizer (m): 13.5
Projected span (m): 10
Aspect ratio: 5.7
Projected aspect ratio: 4.23
All-up weight ParaTrike (kg): 120–387
Canopy weight (kg): 8.1
Root cord (m): 2.96
Tip chord (m): 0.3
Length of lines on B (m): 8.4
Total line length (m): 449
Frame hook-up width (mm): 500–650
Minimum recommended engine thrust (size 33) (kgf): 115
V-min: 25 km/h
V-trim closed: 36–40 km/h
V-trim neutral: 43–47 km/h
V-trim open: 50–56 km/h
V-max: 69 km/h
Min sink at optimal wing loading: 1.2 m/s
Paramotor certification: DGAC
Trike certification: DGAC

Size

36

Cells: 58
Area (m²): 36
Projected area (m²): 30.46
Span incl. stabilizer (m): 14.7
Projected span (m): 11.64
Aspect ratio: 6
Projected aspect ratio: 4.45
All-up weight ParaTrike (kg): 120–430
Canopy weight (kg): 8.3
Root cord (m): 2.96
Tip chord (m): 0.3
Length of lines on B (m): 8.89
Total line length (m): 488
Frame hook-up width (mm): 500–650
Minimum recommended engine thrust (size 33) (kgf): —
V-min: 25 km/h
V-trim closed: 36–40 km/h
V-trim neutral: 43–47 km/h
V-trim open: 50–56 km/h
V-max: 69 km/h
Min sink at optimal wing loading: 1.2 m/s
Paramotor certification: DGAC
Trike certification: DGAC

IV · Material

Cloth and warranty.

Sail cloth: 42 g/m² zero-porosity Ripstop Nylon
Rib reinforcement: FLEXON® batten system
Lines: Super Aramid with polyester sheath; lower brake lines in polyester
Connections: Stainless-steel maillons
Warranty: 3 years / 250 hours

V · Lines

Line chart.

Line layout per position for APCO F3 Bi MKII.
Position	Material	Sheathing	Diameter (mm)	Strength (kg)
Upper	Dyneema	sheathed	1.1	95
Mid	Super Aramid	sheathed	1.9	320
Lower A, B and ST	Super Aramid	sheathed	2.5	450
ST top	Super Aramid	sheathed	1.8	230
Lower C and D	Super Aramid	sheathed	1.9	325
Upper brake, middle brake	Dyneema	sheathed	1.1	95
Tip Steering	Dyneema	sheathed	1.1	95
Lower brake and 2D brake	Dyneema	sheathed	2.0	190

VI · Construction

About this model.

Foot launch is possible too: the lighter load results in slower take-off speed with minimum running.

Full reflex profile with the Mohawk system for roll stability and a safe speed range in daily commercial operation.

This product is NOT designed for high-load aerobatic manoeuvres.

Certification: DGAC (sizes 33 and 36); certificate and manual are linked in the downloads section.

VII · Downloads

Manuals and certificates.

All documents for this model in the document library →

VIII · Gallery

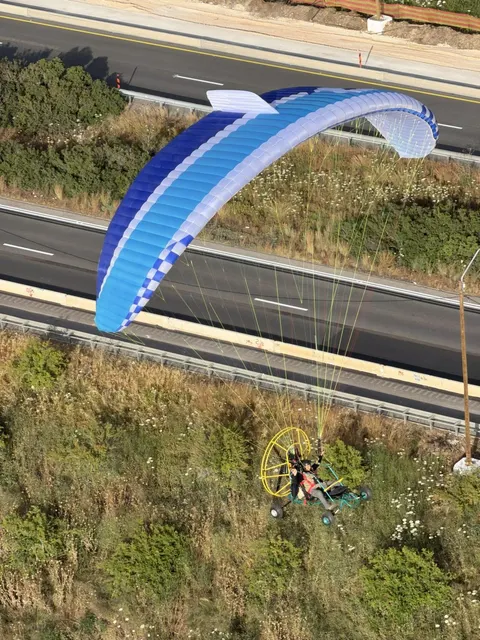

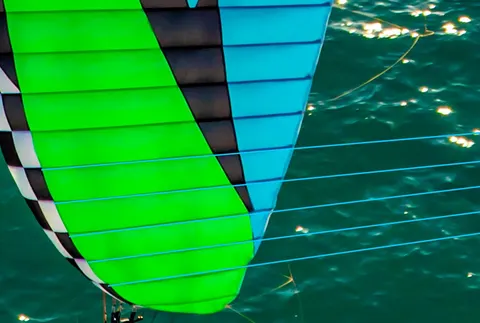

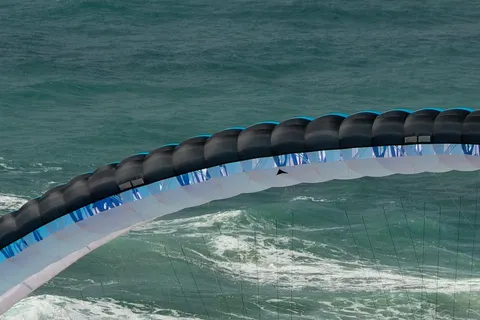

Gallery.

IX · FAQ

Frequently asked questions about the APCO F3 Bi MKII.

Which configuration is the F3 Bi MKII designed for?

The F3 Bi MKII is a full-reflex tandem wing for trike applications.

What sizes and load ranges are there?

There is 33 m² with up to 250 kg and 36 m² with 120–430 kg published all-up load.

What is the speed range?

The published figures range from V-min 25 km/h to V-max 69 km/h; the trim speeds are listed in the size table.
