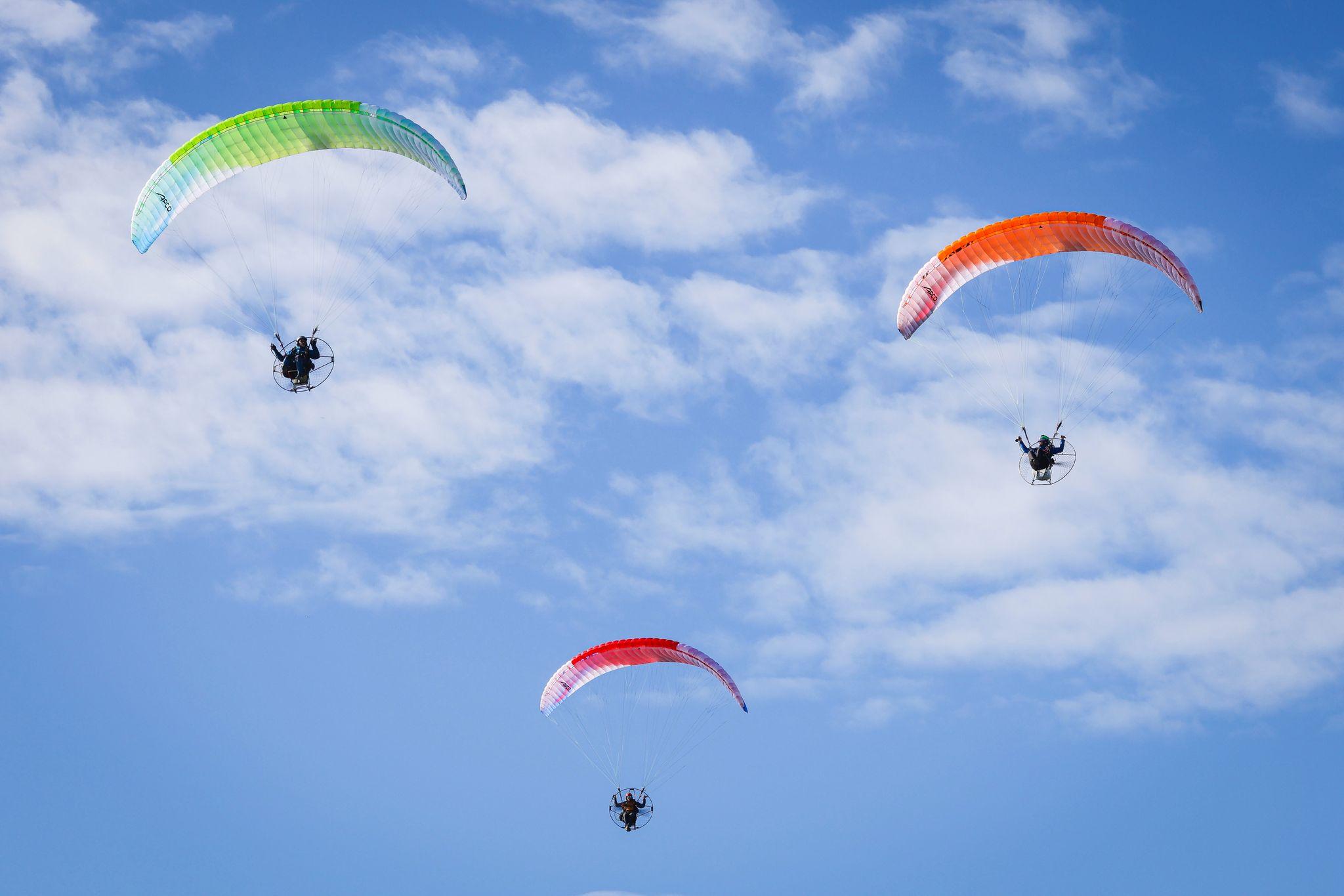

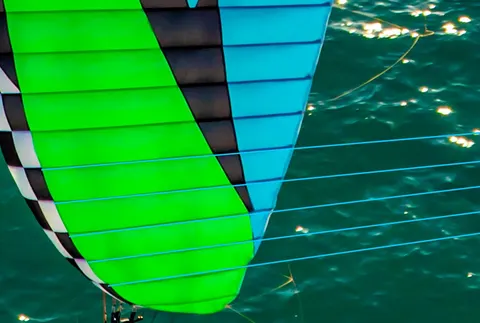

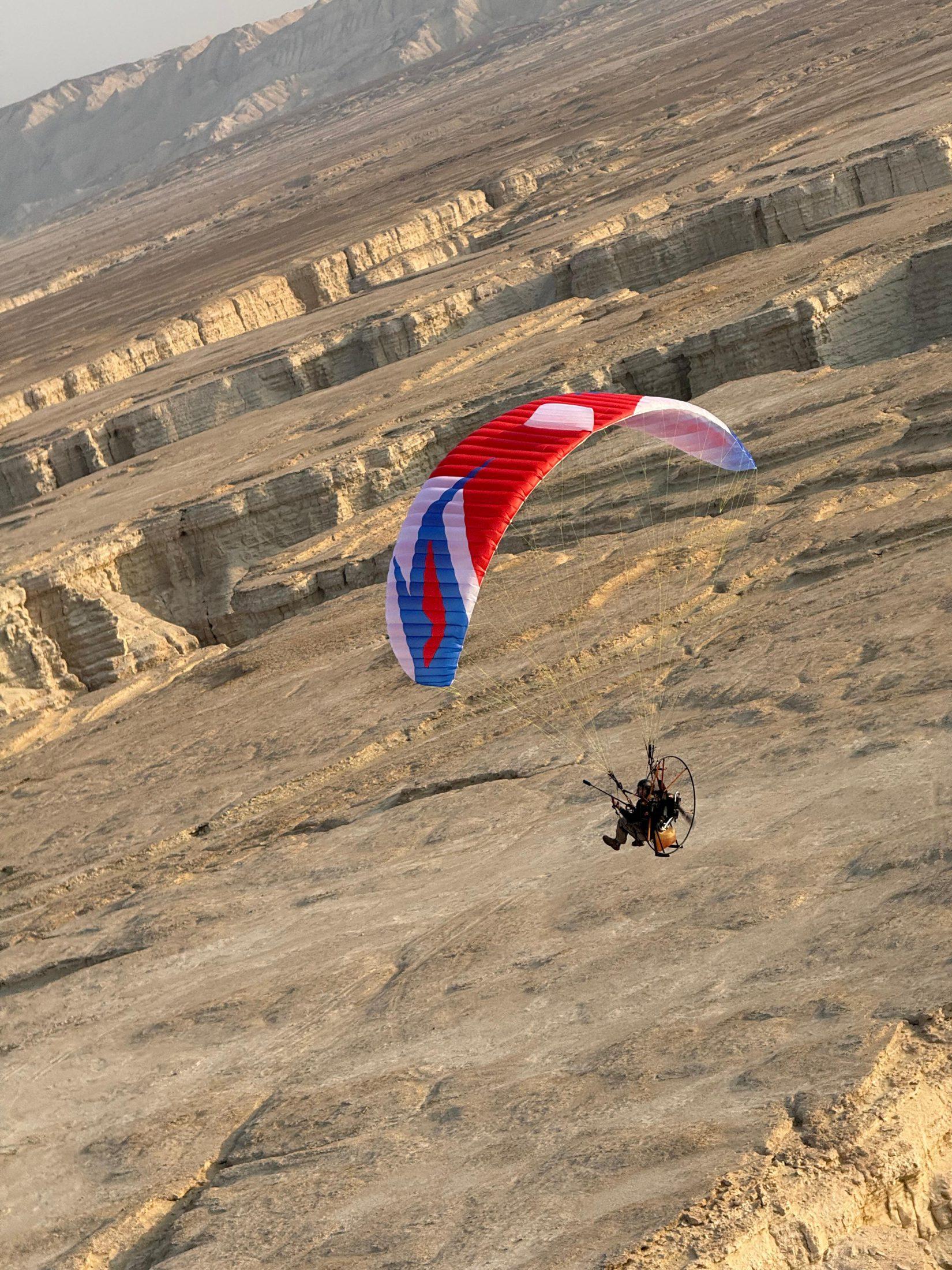

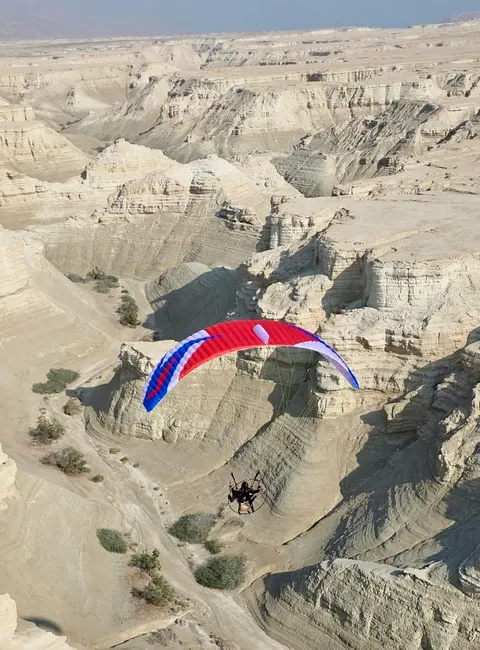

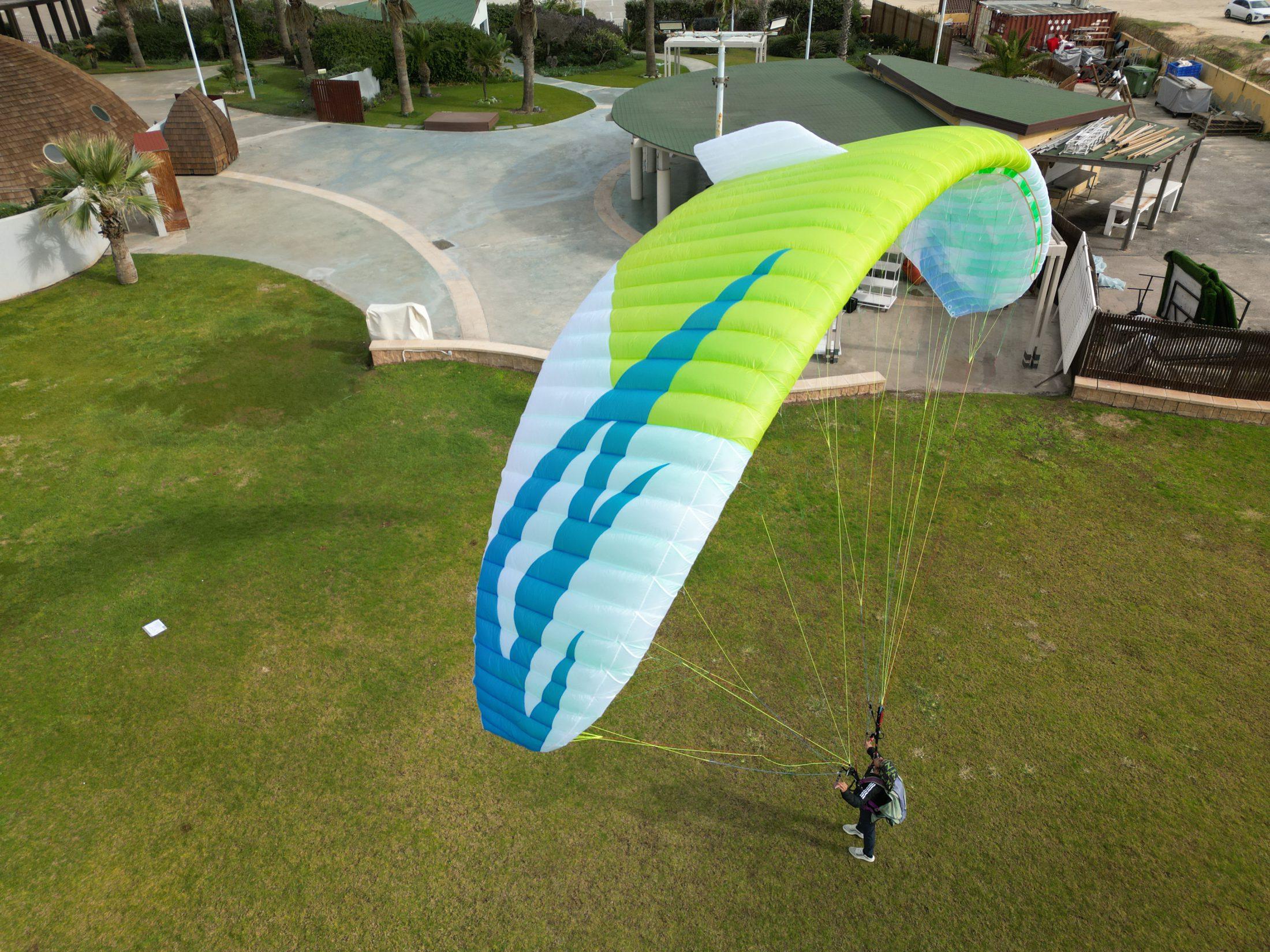

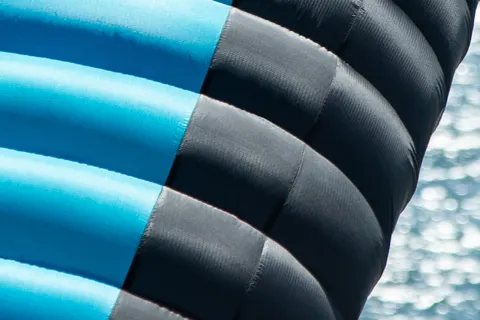

APCO NRG III – paramotor wing by APCO Aviation in flightAPCO NRG III – paramotor wing by APCO Aviation in flight (image 2)APCO NRG III – paramotor wing by APCO Aviation in flight (image 3)APCO NRG III – paramotor wing by APCO Aviation in flight (image 4)
DATA SHEET · APCO-NRG-III

APCO NRG III

The NRG III is a new reflex-freestyle concept. It is our first reflex wing combining SAP reinforced Shark Nose and a foldable (zipped) Mohawk, it delivers a wide range of use:

DGAC 3 Sizes
Datasheet

APCO NRG III at a glance

Certification
DGAC
Sizes
15.5 · 16.5 · 17.5
All-up weight
125–145 kg
Area
15,83–17,50 m²
Cells
48–52
Canopy weight
3,9–4,3 kg
Speed
39–80 km/h
Min. sink
1,4 m/s

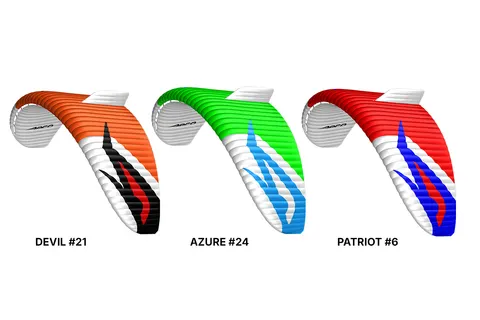

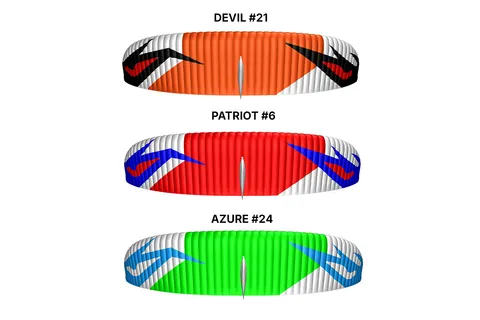

Colours
Devil #21 · Patriot #6 · Azure #24
Warranty
3 years / 250 Hours
Manual
Open PDF

Manufacturer data · Source

II · Highlights

Three reasons for APCO NRG III.

III · Sizes

Size chart.

Specifications per size for APCO NRG III (3 sizes).
Datasheet 15.516.517.5
Cells 485052
Area [m²] 15.8316.6617.5
Area (projected) [m²] 13.2813.9814.69
Span (incl. stabiliser) [m] 9.099.5710.04
Span (projected) [m] 7.237.617.98
Aspect ratio 5.225.495.76
Aspect ratio (projected) 3.934.144.34
Canopy weight [kg] 3.94.054.3
Certified weight range, powered [kg] bis 125bis 135bis 145
V-min [km/h] 272727
V-trim [km/h] 39-4939-4939-49
V-trim open [km/h] 585858
V-max [km/h] 80+80+80+
Min. sink at optimal wing loading [m/s] 1.41.41.4
Certification DGAC in ArbeitDGAC in ArbeitDGAC in Arbeit
Size

15.5

Cells
48
Area [m²]
15.83
Area (projected) [m²]
13.28
Span (incl. stabiliser) [m]
9.09
Span (projected) [m]
7.23
Aspect ratio
5.22
Aspect ratio (projected)
3.93
Canopy weight [kg]
3.9
Certified weight range, powered [kg]
bis 125
V-min [km/h]
27
V-trim [km/h]
39-49
V-trim open [km/h]
58
V-max [km/h]
80+
Min. sink at optimal wing loading [m/s]
1.4
Certification
DGAC in Arbeit
Size

16.5

Cells
50
Area [m²]
16.66
Area (projected) [m²]
13.98
Span (incl. stabiliser) [m]
9.57
Span (projected) [m]
7.61
Aspect ratio
5.49
Aspect ratio (projected)
4.14
Canopy weight [kg]
4.05
Certified weight range, powered [kg]
bis 135
V-min [km/h]
27
V-trim [km/h]
39-49
V-trim open [km/h]
58
V-max [km/h]
80+
Min. sink at optimal wing loading [m/s]
1.4
Certification
DGAC in Arbeit
Size

17.5

Cells
52
Area [m²]
17.5
Area (projected) [m²]
14.69
Span (incl. stabiliser) [m]
10.04
Span (projected) [m]
7.98
Aspect ratio
5.76
Aspect ratio (projected)
4.34
Canopy weight [kg]
4.3
Certified weight range, powered [kg]
bis 145
V-min [km/h]
27
V-trim [km/h]
39-49
V-trim open [km/h]
58
V-max [km/h]
80+
Min. sink at optimal wing loading [m/s]
1.4
Certification
DGAC in Arbeit
IV · Material

Cloth and warranty.

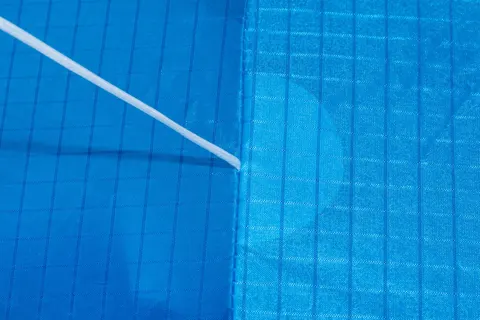

Sail Cloth
42 gr/m² "Zero Porosity" Ripstop Nylon

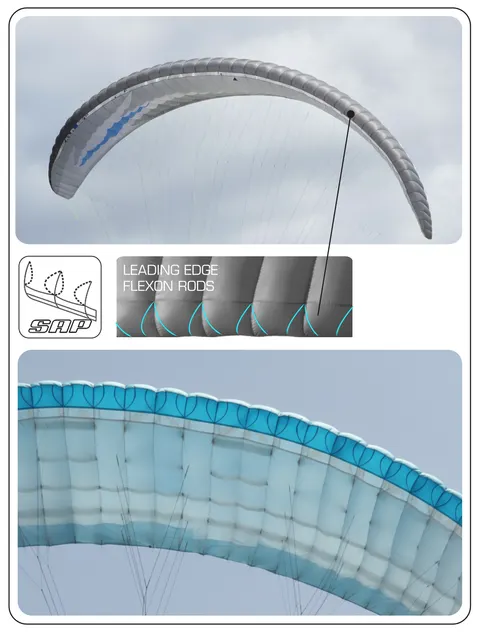

Rib Reinforcement
FLEXON® batten system
Warranty
3 years / 250 Hours
V · Lines

Line chart.

Line layout per position for APCO NRG III.
PositionMaterialDiameter [mm]Strength [kg]
TopTopDyneema1.090
Mid (a1:b1:c1:d1)Mid (a1:b1:c1:d1)Vectran1.0153
Mid (Brake; a3,5; b3,5; c; d)Mid (Brake; a3,5; b3,5; c; d)Vectran0.9115
Bottom (A3,5; B3,5)Bottom (A3,5; B3,5)Super Aramid1.4254
Bottom (A1; B1)Bottom (A1; B1)Super Aramid1.6325
Bottom (C; D; St)Bottom (C; D; St)Super Aramid1.0137
Brake Cascades; St topBrake Cascades; St topVectran0.650
Steering LineSteering LinePolyester2.085
VI · Construction

About this model.

Freestyle – playful, energetic handling when you want it

Built for pilots who demand both adrenaline and versatility. With crisp, precise handling, outstanding stability, and surprising comfort, it’s the perfect companion for everything from dynamic freestyle sessions to long XC adventures.

Closed Mohawk: unlock an ultra-dynamic wing, with lightning-fast reactions and full of energy.

Open Mohawk: enjoy a more damped yet lively wing, tuned for XC efficiency and stability – perfect for long flights with friends, while still letting you throw in wingovers and adrenaline packed fun along the way.
