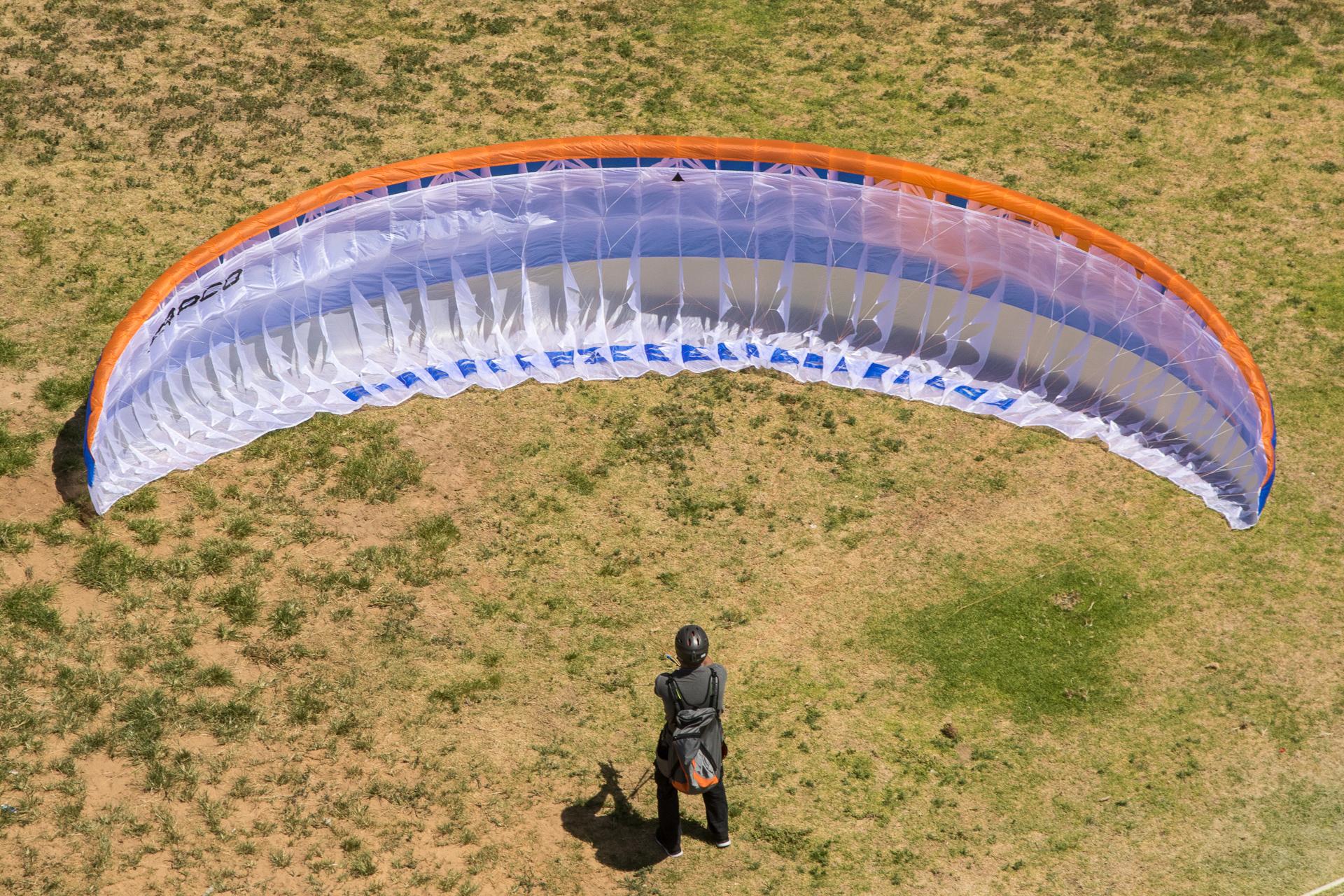

Forgiving inflation and intuitive handling.
Built for passive stability and predictable behaviour.
Lightweight construction without giving up durability.
| Datasheet | S | M | L | XL |
|---|---|---|---|---|
| Cells | 48 | 48 | 48 | 50 |
| Area [m²] | 20 | 22 | 24 | 25.56 |
| Area (projected) [m²] | 16.9 | 18.6 | 20.3 | 21.65 |
| Span (incl. stabiliser) [m] | 10.1 | 10.6 | 11.0 | 11.59 |
| Span (projected) [m] | 7.9 | 8.3 | 8.6 | 9.06 |
| Aspect ratio | 5.1 | 5.1 | 5.1 | 5.25 |
| Aspect ratio (projected) | 3.7 | 3.7 | 3.7 | 3.79 |
| Max. chord [m] | 2.43 | 2.54 | 2.65 | 2.65 |
| Line length at B [m] | 6.06 | 6.35 | 6.64 | 7.10 |
| Total line length [m] | 315 | 324 | 333 | 352 |
| Canopy weight [kg] | 3.0 | 3.1 | 3.2 | 3.3 |
| Certified weight range, free flight [kg] | 55-75 | 70-90 | 85-105 | 100-120 |
| Certified weight range, powered [kg] | 70-95 | 85-110 | 100-125 | 115-140 |
| V-min [km/h] | 22 | 22 | 22 | 22 |
| V-trim [km/h] | 35 | 35 | 35 | 35 |
| V-max [km/h] | 45+ | 45+ | 45+ | 45+ |
| Min. sink at optimal wing loading [m/s] | 1.1 | 1.1 | 1.1 | 1.1 |
| Certification (*in progress) | DGAC EN-B | DGAC EN-B | DGAC EN-B | DGAC EN-B (EN-B*) |
| Position | Material | Diameter [mm] | Strength [kg] |
|---|---|---|---|
| Top | Dyneema | 0.9 | 90 |
| Mitte & Bremse Mitte | Vektran | 0.9 | 115 |
| Mitte a, b, c | Vektran | 1.0 | 153 |
| Untere A, B, C | Aramide | 1.5 | 280 |
| Untere St | Aramide | 1.0 | 130 |
| Bremse oben, St oben | Vectran | 0.9 | 115 |
| Bremse unten | Dyneema | 2.0 | 230 |
Putting aside all the hype – this wing must be flown to be believed!
The Hybrid is much more than an exotic wing for special purposes. It offers many advantages over single skin designs and also classic wings in beginner to sport categories. Hybrid wings will become mainstream products within a few years, replacing many classic designs out there. We are proud that APCO is behind such an innovation!
This project has been long and difficult but we are sure the term “Hybrid” will be forever coined into our sport!
This project started off as a concept, an idea that we wanted to explore but never expected what we found! The initial test flights of the first prototype were so impressive that we virtually dropped all other projects in an effort to bring this wing to the market. After 2 years of intense R&D we launched the HYBRID!

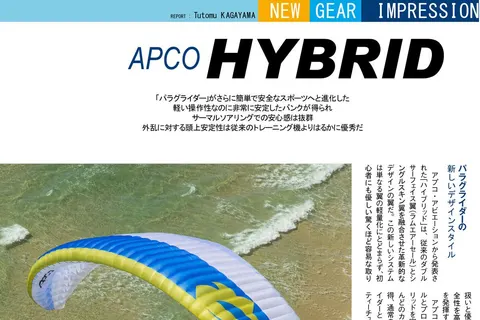

First-hand impressions straight from the air.
